ABG 1570
Mini Paver / Stage V
About this machine
Small in size, big on versatility.
The successor to the AFW 150, developed even further.

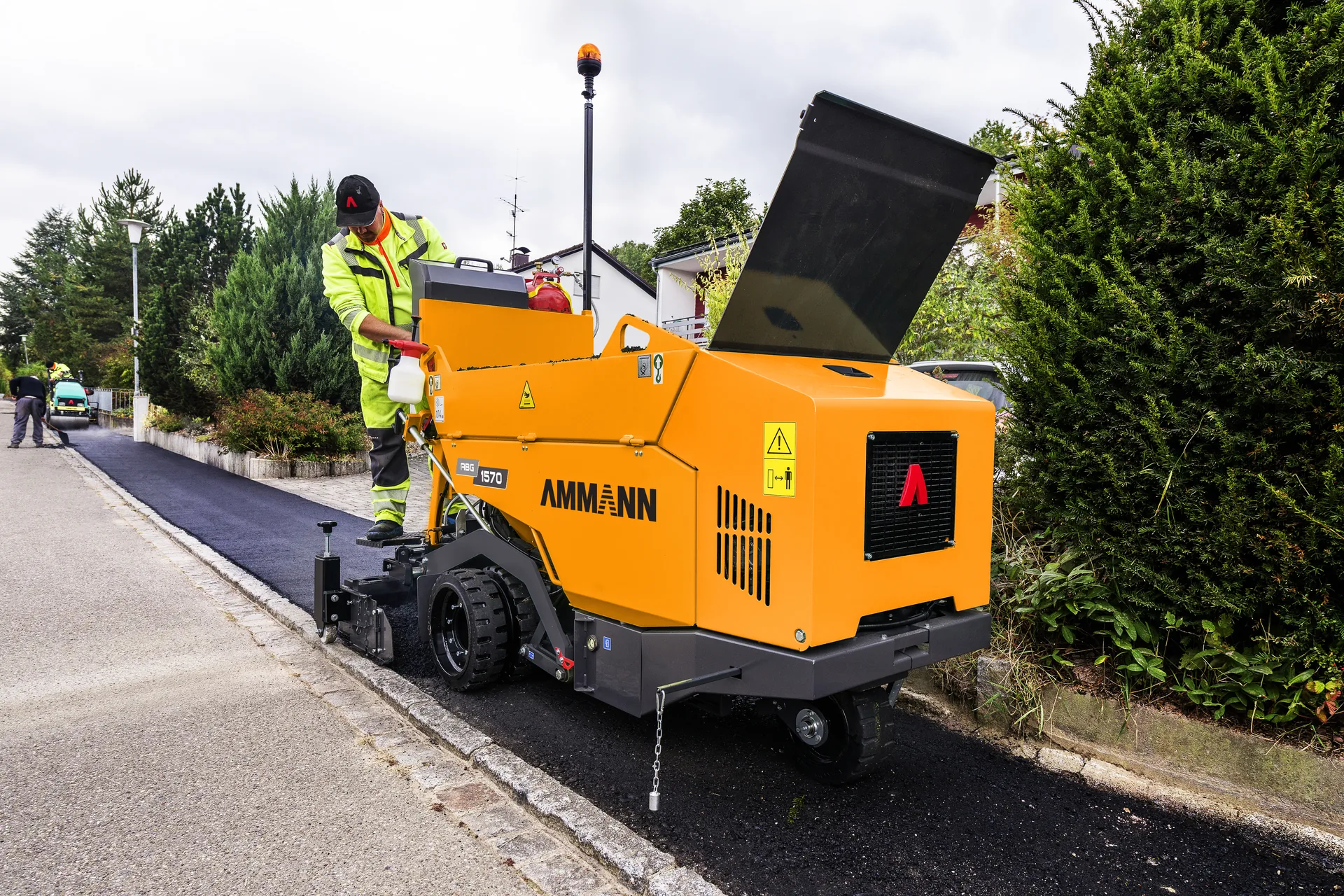

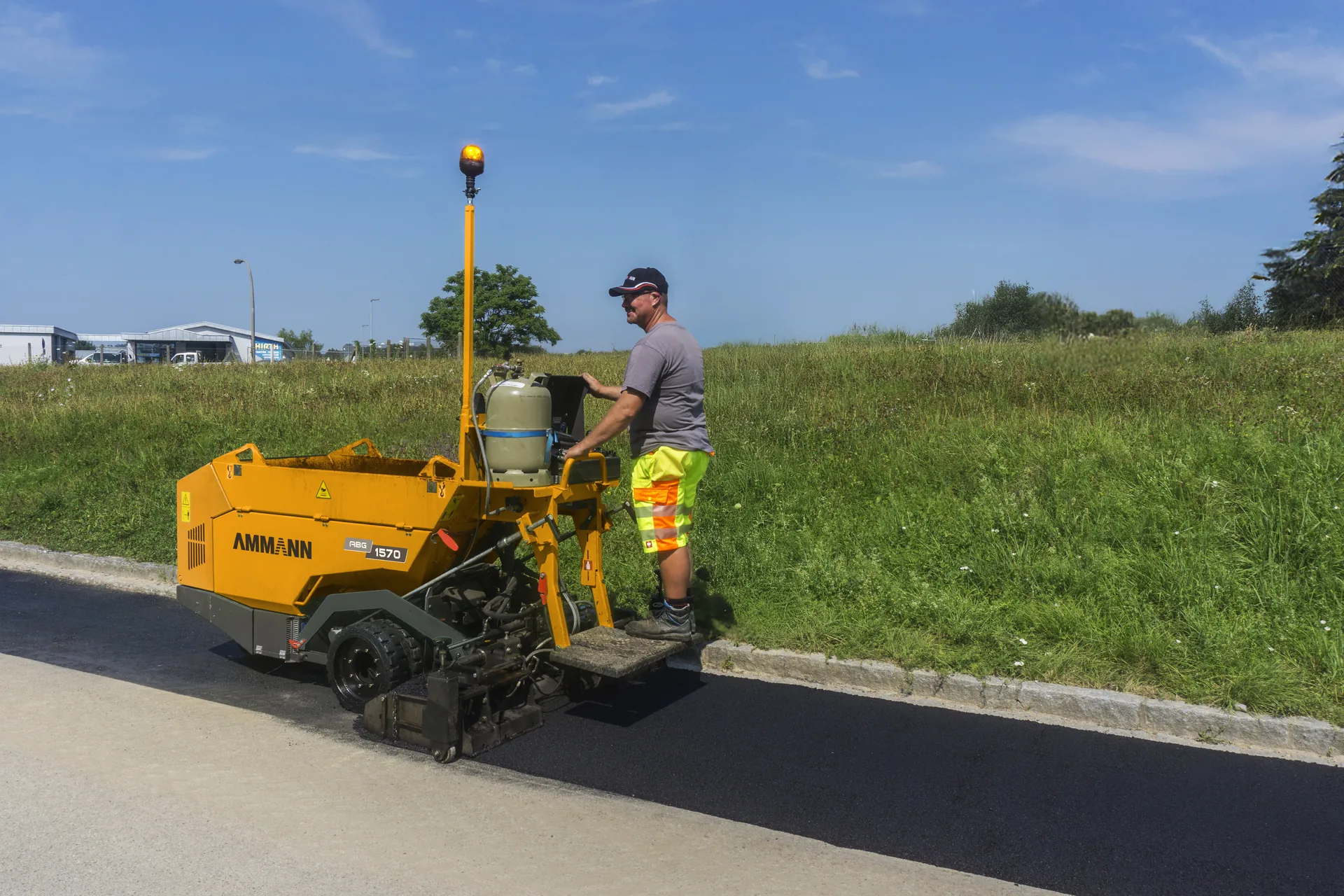

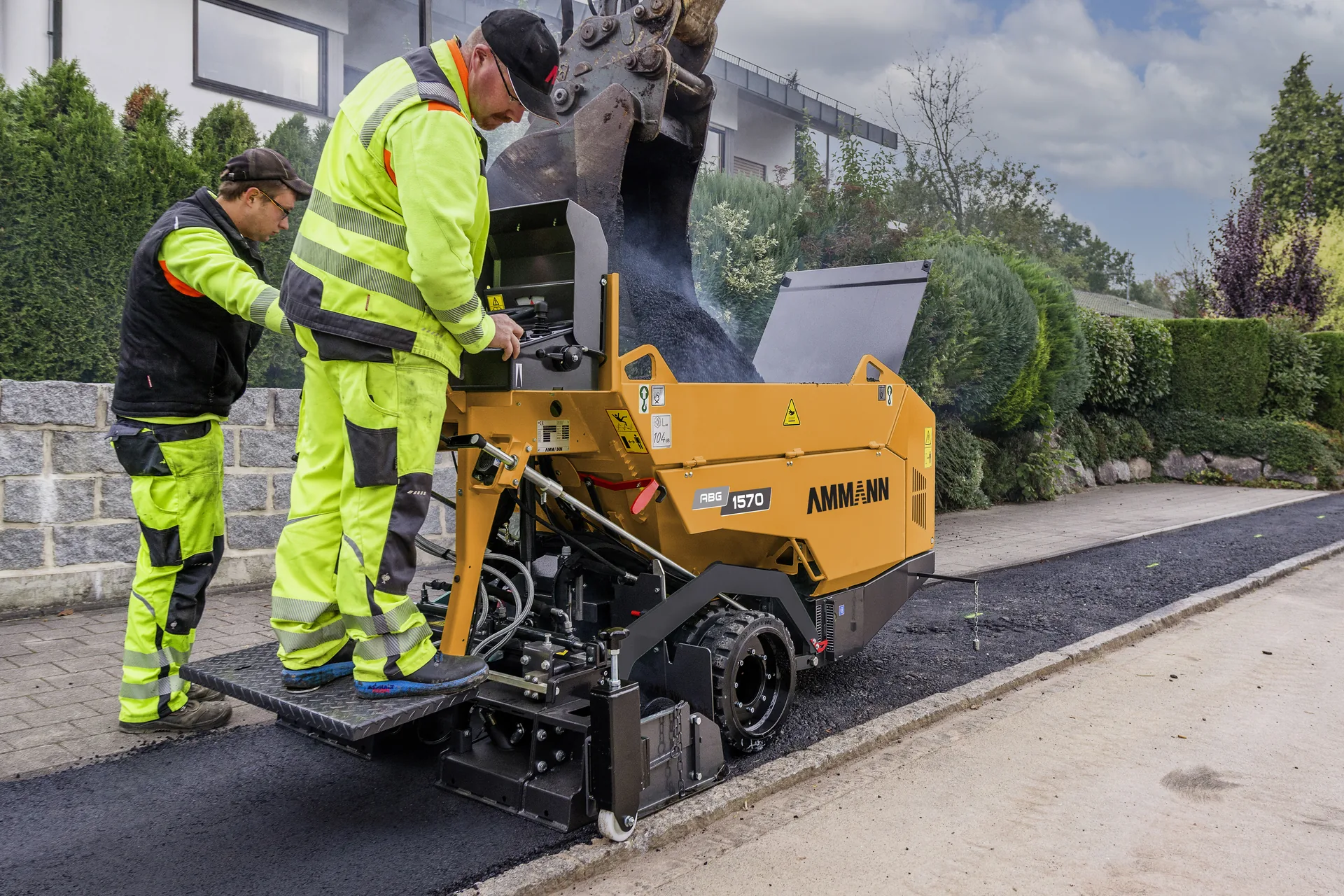

The ABG 1570 is Ammann's new generation of mini paver and the successor to the AFW 150. With a working width of 250 to 1650 mm and a turning radius of just 950 mm, it is ideal for narrow and hard-to-reach areas such as cycle paths, footpaths, trenches and repair work.
The reliable, air-cooled Hatz Stage V engine provides an economical and straightforward drive. The hydraulically extendable screed and the automatic gas burner with temperature control let you work quickly and accurately, with a clean finish. With a top speed of 25 m/min, you are at the next location in no time.
Options such as mechanical extensions up to 1650 mm, a vibration system and dual wheels let you tailor the machine completely to your work.
Specs
Hatz 1B50E diesel engine, EU Stage V
Air-cooled engine
Output of 7.6 kW
Fuel tank of 5 L
Hydraulic oil 11 L
Hydrostatic drive

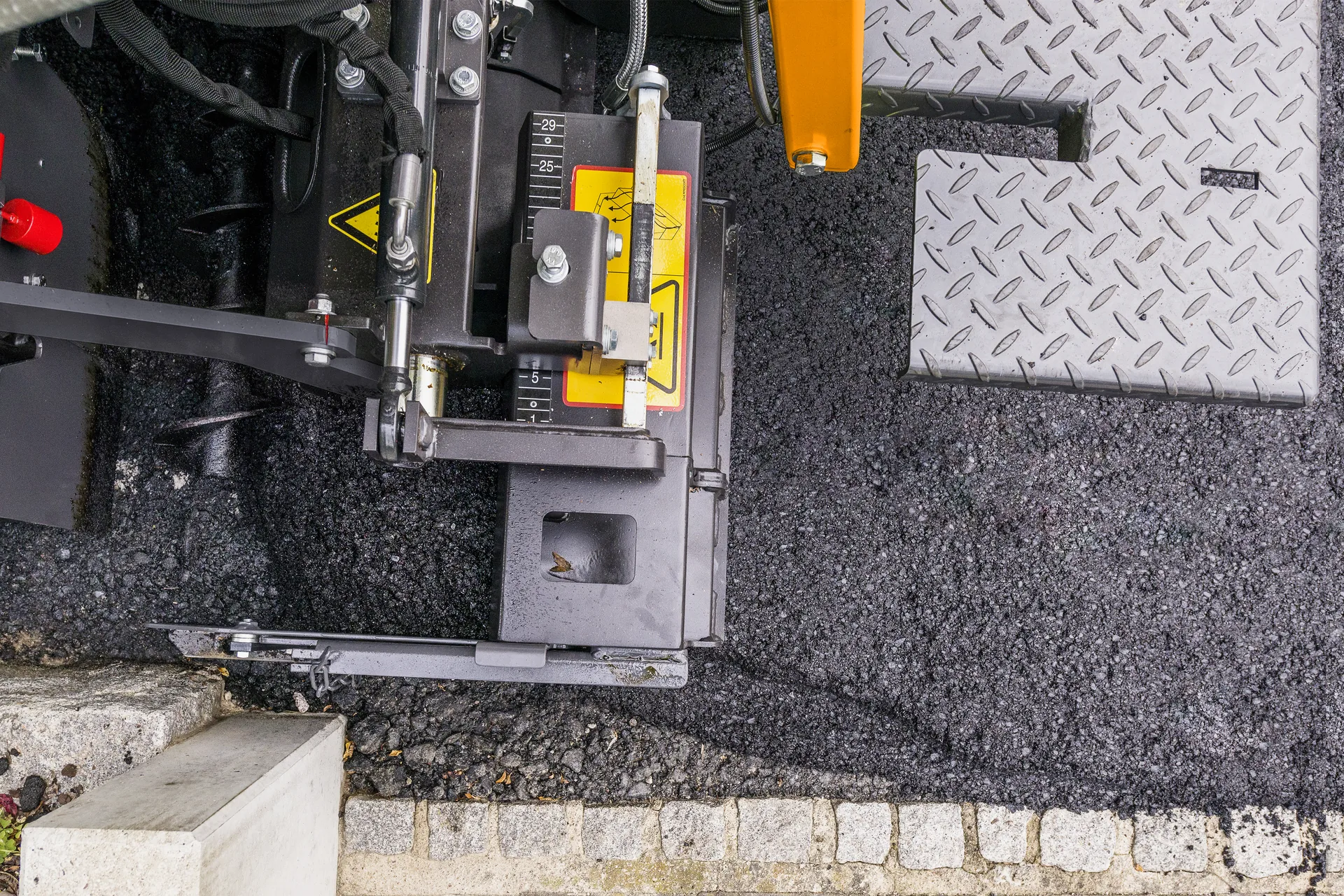

Hydraulically extendable screed
Automatic gas burner with temperature control
Reduction plates for a working width down to 250 mm
Turning radius of 950 mm
Top speed of 25 m/min
(Optional) Mechanical extensions (2 x 175 mm) up to 1650 mm
(Optional) Vibration system
(Optional) Dual wheels
(Optional) Hopper filling aid
(Optional) Extra LED lighting at the auger
(Optional) Front wheel scraper
(Optional) Custom colour
